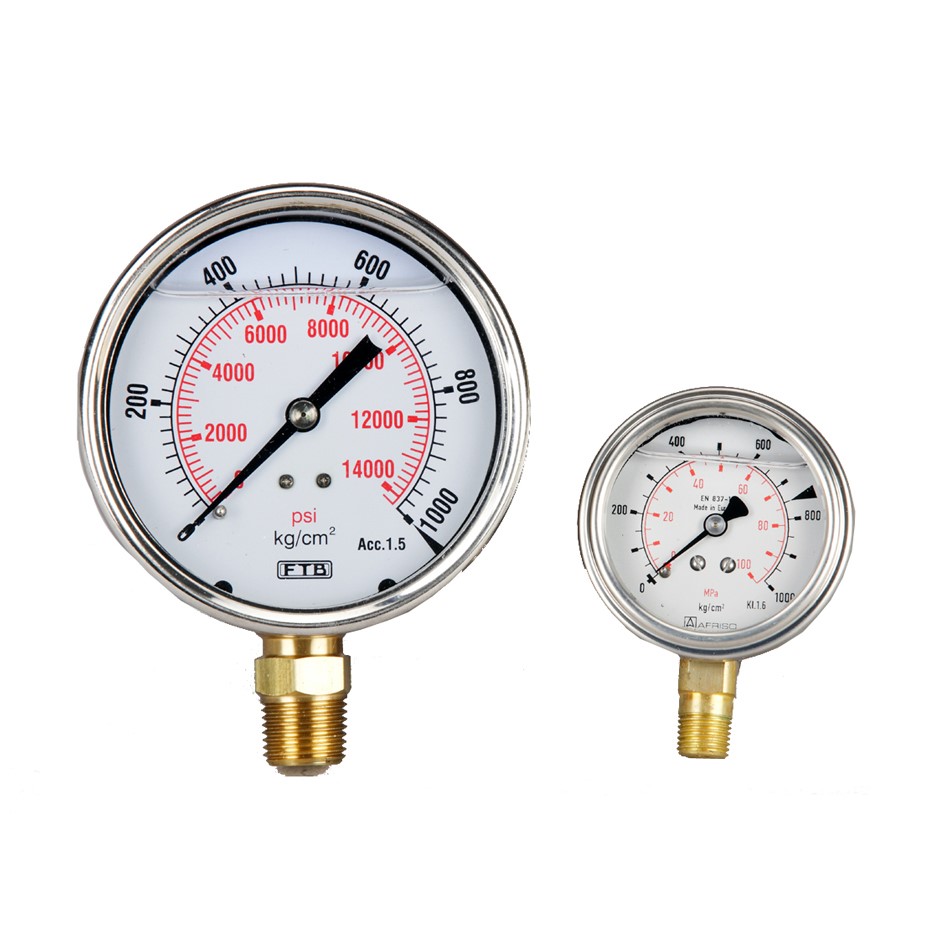

PRESSURE GAUGE 10,000PSI

Recommended for use within all hydraulic systems. Hi-Force hydraulic pressure gauges are manufactured to EN837-1 and are accurate to +/- 1% of full scale.

Discounted hire rates are availble to all trade account holders.

Click here to open a trade account & obtain discounted prices.

Description

Recommended for use within all hydraulic systems. Hi-Force hydraulic pressure gauges are manufactured to EN837-1 and are accurate to +/- 1% of full scale.

Clear pressure dual scale reading
+/- 1% full scale accuracy
Manufactured to EN837-1

Specification

Attribute name	Attribute value
Model	HG1G
Gauge type	Glycerine
Gauge diameter	100mm
Accuracy	+/- 1% full scale
Inner scale	0-700 bar
Outer Scale	0-10,00psi
Inlet thread	1/2" - 14 NPT
Weight (kg)	1 kg
Conformity	EN837-1

Recommended for use within all hydraulic systems. Hi-Force hydraulic pressure gauges are manufactured to EN837-1 and are accurate to +/- 1% of full scale.

Clear pressure dual scale reading
+/- 1% full scale accuracy
Manufactured to EN837-1

Attribute name	Attribute value
Model	HG1G
Gauge type	Glycerine
Gauge diameter	100mm
Accuracy	+/- 1% full scale
Inner scale	0-700 bar
Outer Scale	0-10,00psi
Inlet thread	1/2" - 14 NPT
Weight (kg)	1 kg
Conformity	EN837-1
